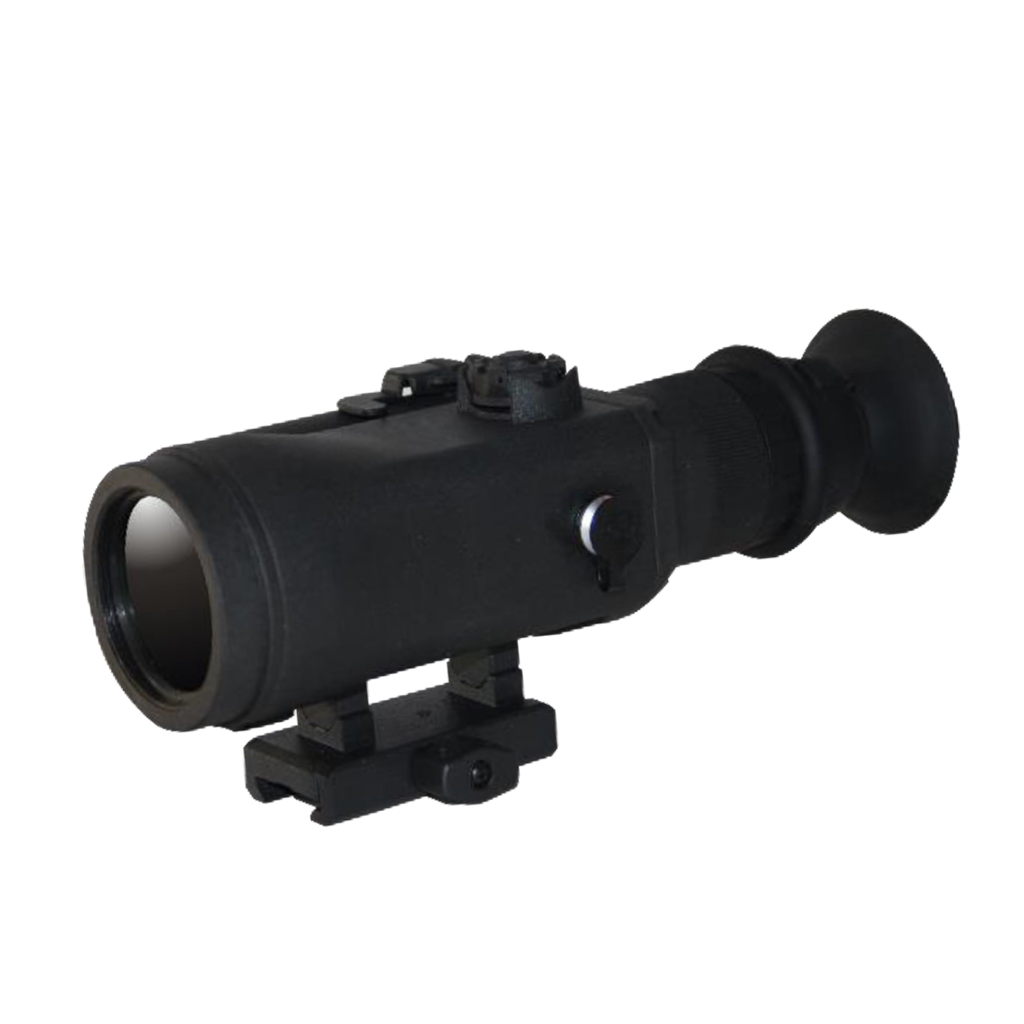

VT-007 Smart Thermal Gun
In the VT-007 smart thermal gun sight developed by our company, the artificialintelligent technology is applied to the field of firearms. And the global first automaticgun calibration, smart ranging and simple manipulation patent technologies are adopted. It subversively solves some problems such as difficult infrared gun calibration, low pointing accuracy, and complicated operation and application, which greatly improves the firearm combat effectiveness.
The automatic guncalibration technology can be used to solve some problems about the traditional gun calibration fully, such as time waste, hard sledding and bullet waste, to realize the quick and accurate single-shot gun calibration.In the product, the lens and the connecting seat can be changed to equip with a wide range of gun families which are widely applied in the world, so as to detect, observe and aim at targets in all-weather conditions in all kinds of environments.
Sensor : Uncooled FPA sensor
Resolution : 640×512 | 384×288
Angle of view : 15.5°×12.4° | 9.3°×7.0
Wave length : 8 μm×14 μm
Pixel pitch : 17 μm×17 μm
Noise equivalent thermal difference : 50 mK
Lens Focal : 40 mm
Working distance : Visibility > 15Km， relative humidity ≤ 80%, temperature+25℃, man-shaped object maximum detection distance 500m
Aiming Adjust
Reticle adjustment : Reticle adjustment accuracy 0.36m mil
Clear eye distance : 35 mm
Oxyoptex : ±4 D
Energy Consumption
Battery continuous working time : ≧ 7 h
Accuracy
Auto-sighting : Shooting deviation ≤ 5mil
Working Environment
Working environment : -40 ℃～+50 ℃
Storage environment : -50 ℃～+60 ℃
Rain exposure : intensity 1.7 mm/min, drop size 0.5-4.5
Physical Features
Size : 202 mm × 81 mm × 87.5 mm
Weight : 710g
