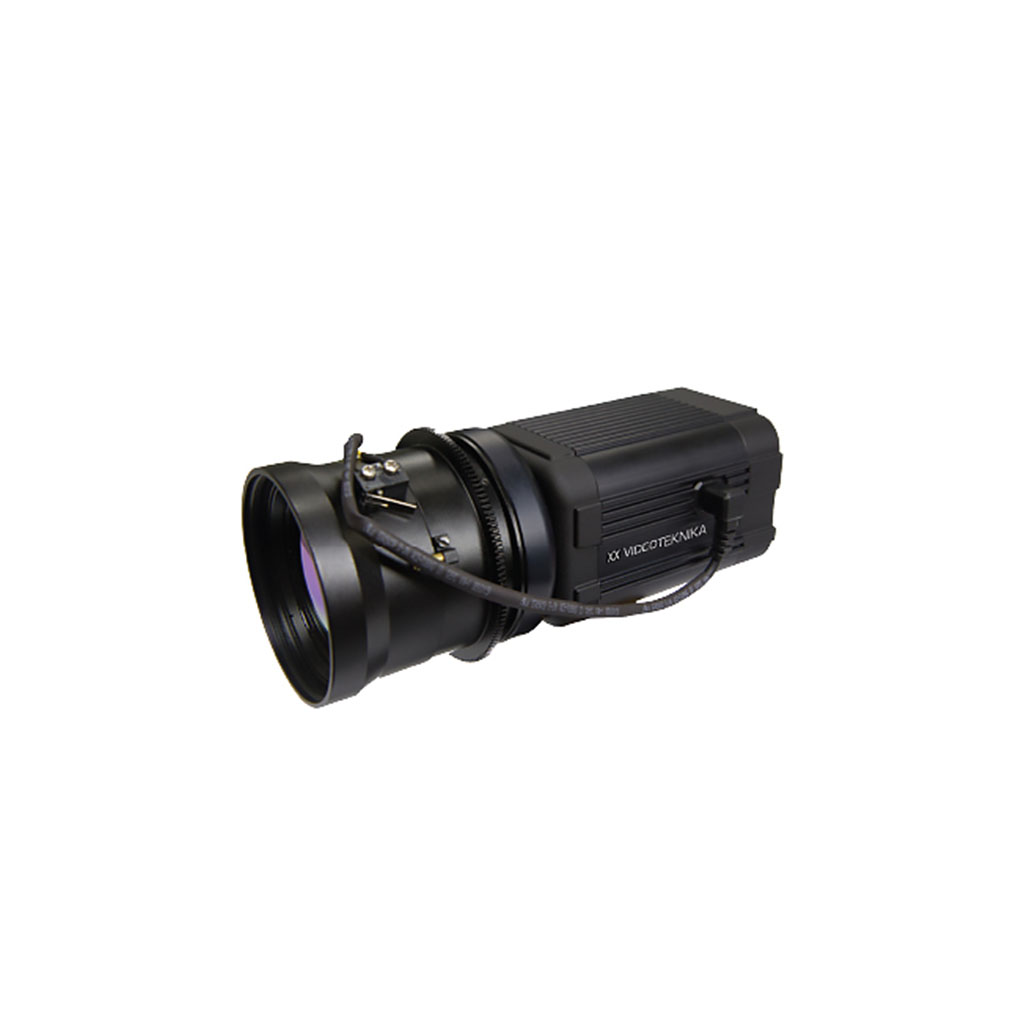

VT-G640-IP Radiometric Camera
User can set alarm temperature in each ROIs in the image(user can set up to 10 rectangular shape ROIs) in min., max., or average temperature. If t temperature of any ROI exceeds set temperature, corresponding camera sends temperature raw data and alarm data in addition to compressed video data to alarm management software.
Then alarm management software starts to record for set period of time (alarm recording) and pop up corresponding channel to show image in bigger size with showing ROI with different frame color where measured temperature exceeded set temperature. At the same time, measured temperature exceeded set temperature is displayed at the location in the ROI.
Resolution(sensor pixels) : 384×288
Thermal sensitivity (NETD) of sensor : <40mK @ f1.0 30Hz 300K
Spectral response : 8-14µm
Measurement accuracy in lab condition : ±2℃ or ±2% of reading
Output : Compressed video data(H.264/MPEG4/M-JPEG), Simplified format of temperature data (min., max., or average temperature in each section or group of sections), Alarm signal
Detection mode(thermal core) Normal temperature detection High temperature detection(Dual) : -20~120℃ 0~650℃
PC software included : Alarm management software as VMS in CCTV field (single site and up to 16 channels version is supplied free of charge and min. level of cost shall be charged for multi-site version and more than 16 channel version) Windows version of SDK provided for customers who develop own software
Lenses : From 4.8 to 250mm/Manual focus or motorized focus Zoom, 2 FOV, Athermalized
Application : Fire prevention, Preventive maintenance, Intrusion detection (human, animal) and other general analysis application
