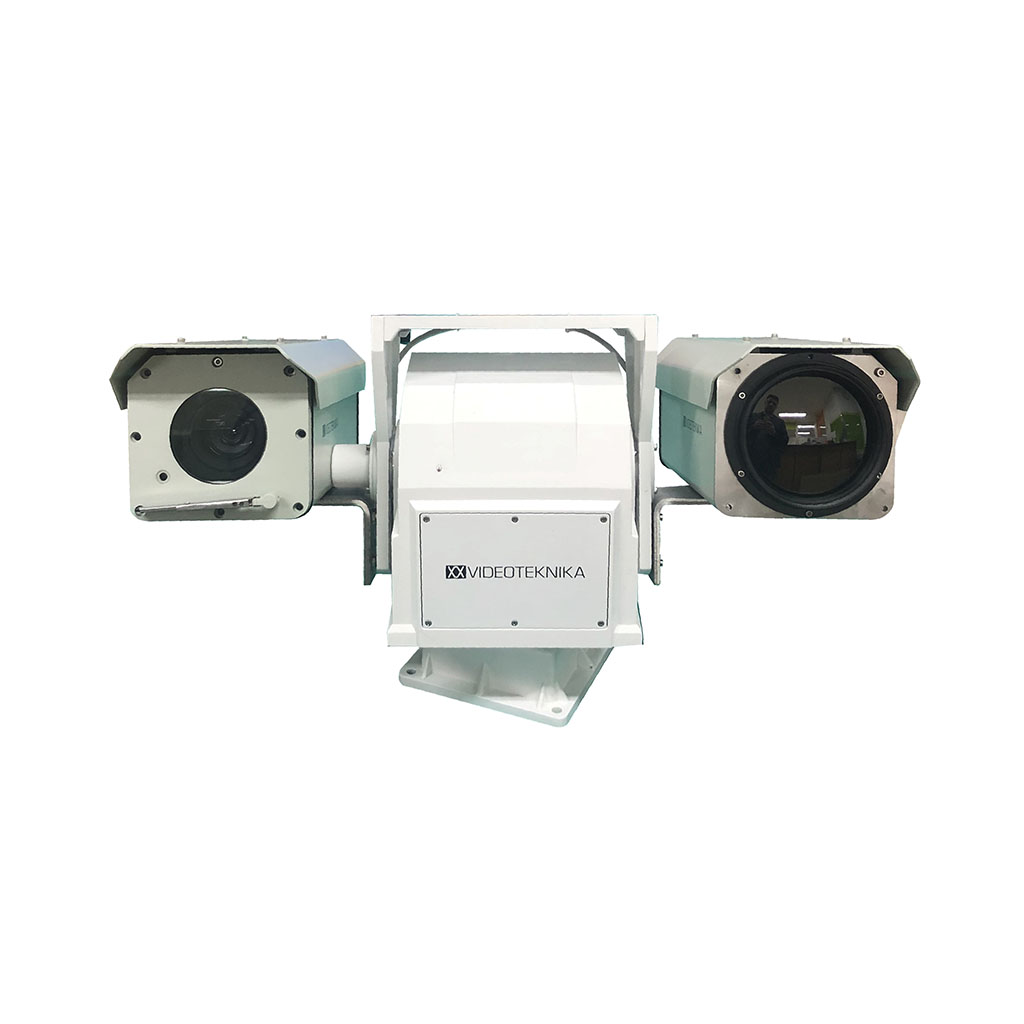

VT-PT600-IP Thermal Security Camera
Separate double cabins design, no light interference
Side housing open design, easy camera installation
Support angle return function
Anti-surge, lighting protection
Indoor or outdoor application
Unique Cooling System (Dual Fans and Simi Conductors technology)
Thermal cameras Available with Different Lenses 35mm, 50mm, 75mm
100mm f 1.0 Fixed and 25mm ~ 100mm(4X) Continues Zoom
Spectral response : 8-14µm (Un-cooled LWIR micro-bolometer
Pixel Pitch : 17µm
Thermal Sensitivity (NETD) : <50mK @f1.0, 30Hz, 300K
Operating temperature : -35°C ~ +80°C, working humidity: ≤90% RH
Digital Zoom : 2X, 4X, 6X
Video Output Format Rate : Compressed video data, H.265, MPEG4, MJPG (ONVIF) CVBS analogue video(BNC port), NTSC 30Hz, PAL 25Hz
Protocol : Pelco P, Pelco D
Lens : 35mm, 50mm, 75mm, 100mm & 25mm ~ 100mm(4X) Continues(Optional)
P & T Drive
Pan Rotation Range : 0°~360° (tilt angle -40°~ +80°)
Pan / Tilt Speed : (0.01° ~45° /s) / (0.01° ~15° /s)
Presets : 200 Preset, 8 auto scan,8 cruising track
Interface : TC/IP, RS485, RS 422
Dimensions : 265mmx 180mmx 315mm
Voltage : 24VDC / POE Calse 3
Ethernet : Giga Ethernet(10/100/1000Mbps)
Power Supply : AC 24V/ DC 24V , ≤85W
Total Weight : 15.5kg
